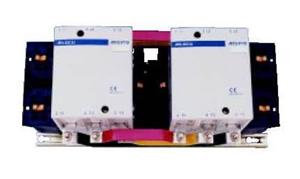

JEC2-F Mechanical Interlocking Contactor

Type                Number of    Rated Current   Rated Current      Controlled power(KW)

                         Poles           AC-3(A)            In/A                    220V          380V

JEC2-F115          3P                  115               250                     200               55

JEC2-F1154        4P                   115              250                      200              55

JEC2-F150          3P                   150              355                     250               75

JEC2-F1504         4P                  150              355                      250              75

JEC2-F185           3P                  185              425                     275               90

JEC2-F1854         4P                   185             425                     275               90

JEC2-F225           3P                  225              500                     315               110

JEC2-F2254         4P                  225              500                     315               110

JEC2-F265           3P                  265              630                     350               132

JEC2-F2654         4P                  265              630                     350                132

JEC2-F330           3P                  330              800                     400                160

JEC2-F3304         4P                  330               800                     400                160

JEC2-F400           3P                  400               800                     500                200

JEC2-F4004         4P                   400              800                     500                200

JEC2-F500           3P                   500        &n
