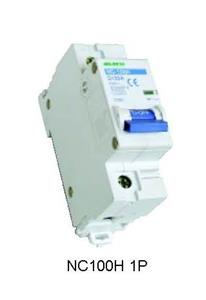

NC 100H Miniature Circuit Breaker

Number of poles                                   1P, 2P, 3P, 4P

Rated Current(A)                              32,40,50,63,80,100,125

Breaking Capacity(A)                                  10000

Rated Voltage(V)                                     230/400
Rated Frequency                                      50/60Hz

Endurance                                              ≥20000

Circumstance Temperature                    -5^oC~+40^oC

Electrical Life                                     no less than 6000 operations

Mechanical Life                              (O-C) no less than 20000 operations

Protection Degree                                     IP20
