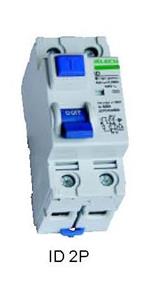

ID Residual Current Circuit Breaker
Number of poles 1P+N, 3P+N
Rated Current(A) 16,20,25,40,50,63
Rated Residual Operating Current (iδn)(mA) 30,100,300,500
Rated Voltage(V) AC 230/240
AC 400/415
Residual Operating Current Scope 0.5Iδn~Iδn
Residual Current Off-time ≤0.3S
Short Circuit Capacity(icu) 6000A
Endurance 4000
Protection Degree IP20
Normal Operation and Mounting Requirement
Circumstance temperature:-5oC~+40oC,average temperature not exceeding 35oC.
Altitude above sea level less than 2000m.
Humidity not exceeding 50% at 40oC and not exceeding 90% at 25oC.
Installation class II or III.
Pollution class II.
Installation method DIN Rail mounting type.
The external magnetism shall not be more than 5 times of terrestrial one.
Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.
