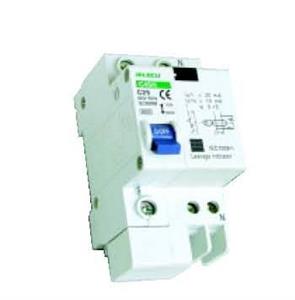

DZ47LE C45LE Residual Current Breaker
Normal Operation and Mounting Requirement
Circumstance temperature -5oC~+40oC,average temperature not exceeding 35oC.
Altitude above sea level less than 2000m.
Humidity not exceeding 50% at 40oC and not exceeding 90% at 25oC.
Installation class II or III.
Pollution class II.
Installation method DIN Rail mounting type.
The external magnetism shall not be more than 5times of terrestrial one.
Product shall be installed vertically at the place where there shall be no severe impact and vibration.The product is switched on when the handle is at upper position.
Specifications
Number of poles 1P+N, 2P, 3P, 3P+N, 4P
Rated current(A) 6,10,16,20,25,32,40,50,63
Rated operdting current(mA) 30,100,300,500
Rated non operating (IδN)(mA) ≤0.5Iδn
Rated voltage(V) 220/380
Tripping curve C,D
Type Electronic
Wiring Diagram
Single-Pole Double-Pole Triple-Pole Triple-Pole Four-Pole
Double Line Double Line Triple Line Four Line Four Line
C45N+DZ47L C45N+DZ47L C45N+DZ47L C45N+DZ47L C45N+DZ47L
C45N+C45L C45N+C45L C45N+C45L C45N+C45L C45N+C45L
1/2 2/2 3/3 3/4 4/4
