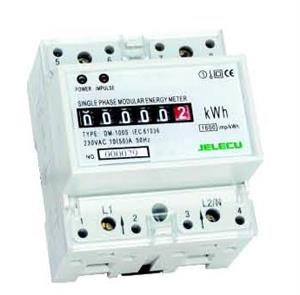

DM-100S Single Phase Modular Energy Meter
Rated Current 5A/CT ,2.5(10)A, 3(15)A, 10(40)A, 10(50)A, 20(60)A, 20(80)A,20(100)A
Normal Voltage (Un) 120V, 230V
Operation Voltage 70~130%Ub
Insulation AC Voltage Withstand 2KV for 1 minute
Capability Impulse Voltage Withstand 6KV-1,2/50u S waveform
Operation Current Range 0,05lb~lmax(Direct) 0.02lb~lmax(With CT)
Starting Current Range 0.004lb(Direct) 0,002lb(with CT)
Over Current Withstand 2400A for 0,5s
Operation Frequency Range 50Hz +_ 10%
Internal Power Consumption ≤2W/10VA
Tast Output Flash Rate 3200 1600 800 impulses per kWh
Power Supply Green Indicator Meter is connected and working
Indication Red Indicator Red led shows impulse rate
