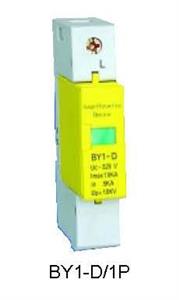

BY1-D/2&BY1-D/4
???????????? Type??????????????????????????????????????????????? BY1-D/2??????? BY1-D/4
???????????? Class?????????????????????????????????????????????????? D?????????????????? D
?? Rated voltage Un(V)?????????????????????????????????????? 220?????????????? 380
Maximum continuous operating voltage Us(V)????? 320?????????????? 220
??? Protection level up (KV)????????????????????????????????≤1.0???????????? ≤1.0
Norminal discharge current (8/20uS) In (KA)????????5?????????????????? 5
Max discharge current (8/20uS) Imax (KA)?????????? 10?????????????? 10
?? Response time T (ns)????????????????????????????????????? <25????????????? <25
?? Temperature range???????????????????????????????????-40oC~+80oC??? -40oC~+80oC
??? Max back up fuse?????????????????????????????????????? 16A gl?????????????? 16A gl
?? ?Color (module/base)???????????????????????????????? Yellow/gray??????? Yellow/gray
?? ?Material?????????????????????????????????????????????????????? PBT????????????????? PBT
?? Normal modle????????????????????????????????????????? BY1-D/2-320?????? BY1-D/4-320
? With alarm model???????????????????????????????????? BY1-D/2-320B????? BY1-D/4-320B
With remote control contact model?????????????? BY1-D/2-320X????? BY1-D/4-320X
